Exposing HTTP processors

You can use the ListenHTTP processor to start a HTTP webserver and listen for incoming connections.

In this case POST requests are being send to NiFi, which acts as a webhook to receive data here. You should also be able to serve GET requests by using the HandleHttpRequest processor, however this is currently not demonstrated in this guide.

1. Create ListenHTTP processor

Let’s start by creating a ListenHTTP processor:

  1. Set Base Path to an empty string

  2. Set Listening Port to 8042.

  3. Set Record Reader to an JsonTreeReader and Record Writer to an JsonRecordSetWriter instance. This guide assumes that JSON documents are being posted to the listener. For other document formats, change the record reader and writer accordingly.

You should end up with something similar to

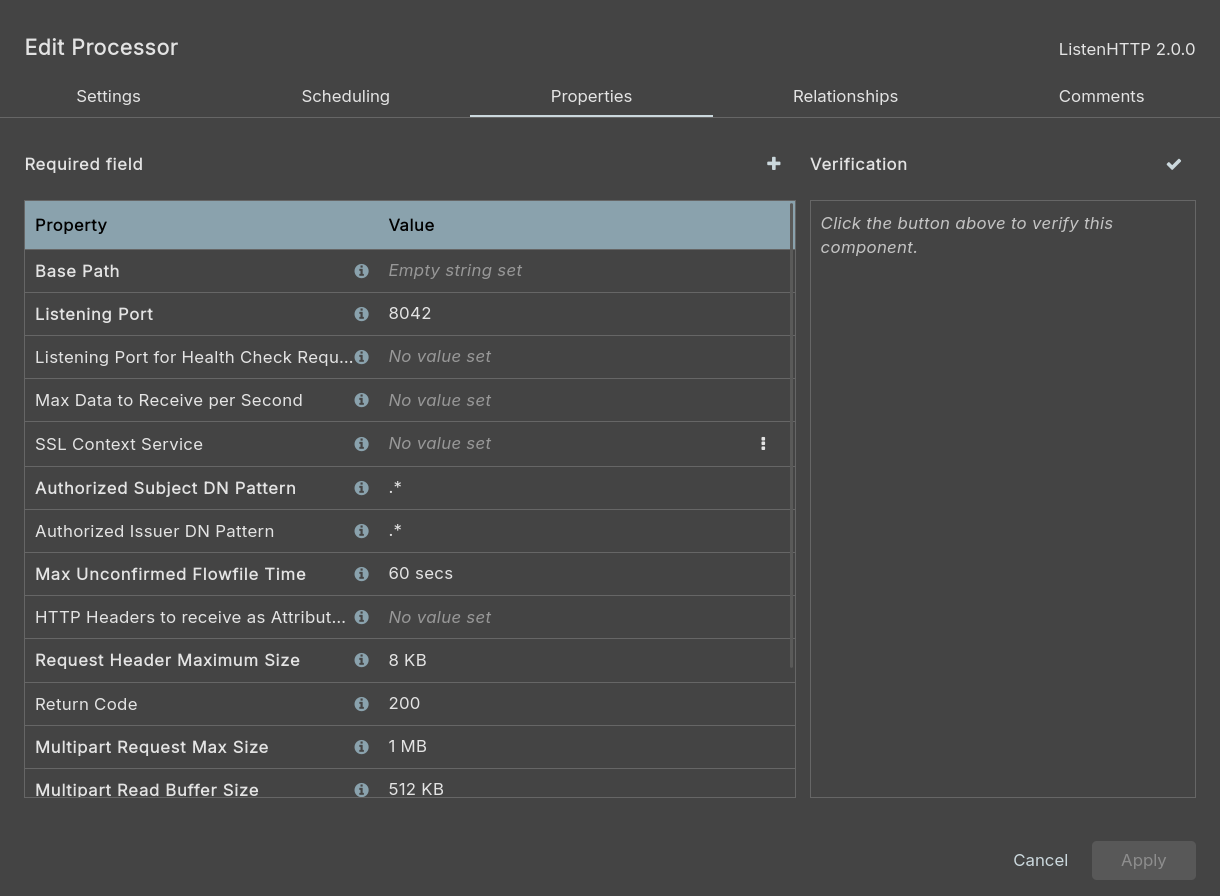

A ListenHTTP processor

2. Expose ListenHTTP processor

Afterwards you need to expose the processor to the outside world.

For that to work, first create a Service object as follows. In this guide, the NifiCluster is called simple-nifi. The name of the Nifi cluster must match the value of the app.kubernetes.io/instance as shown below.

apiVersion: v1
kind: Service
metadata:
  name: simple-nifi-listen-http # Update according to NifiCluster name
spec:
  type: ClusterIP
  selector:
    app.kubernetes.io/component: node
    app.kubernetes.io/instance: simple-nifi # Update according to NifiCluster name
    app.kubernetes.io/name: nifi
  ports:
  - name: http
    port: 8042
    protocol: TCP
    targetPort: 8042

In case you don’t have an ingress controller, you can set the Service type to LoadBalancer or NodePort instead and should be ready to go. If you are using an ingress controller, an Ingress could look something like

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: simple-nifi-listen-http # Update according to NifiCluster name
spec:
  rules:
  - host: simple-nifi-listen-http.my.corp # Update to your host
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: simple-nifi-listen-http # Update to your Service name
            port:
              number: 8042

3. Route

The next step is to handle different kind of messages coming in, based on the HTTP path.

First, create a RouteOnAttribute processor and connect it to the success output of the ListenHTTP processor as shown below. Start the ListenHTTP processor.

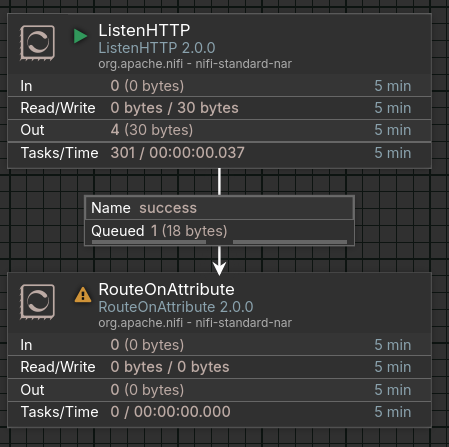

´RouteOnAttribute connected to ListenHTTP processor

The ListenHTTP processor should now generate a FlowFile for every incoming HTTP request. You can test this by calling curl --verbose --data '{"hello":"NiFi"}' https://simple-nifi-listen-http.my.corp, you should get a HTTP/2 200 response.

If you get a 503 Service Temporarily Unavailable, this probably means your Ingress controller was not able to reach your ListenHTTP processor. Check that the processor is running and configured correctly.

This should result in one FlowFile being queued, as shown in the picture above and below.

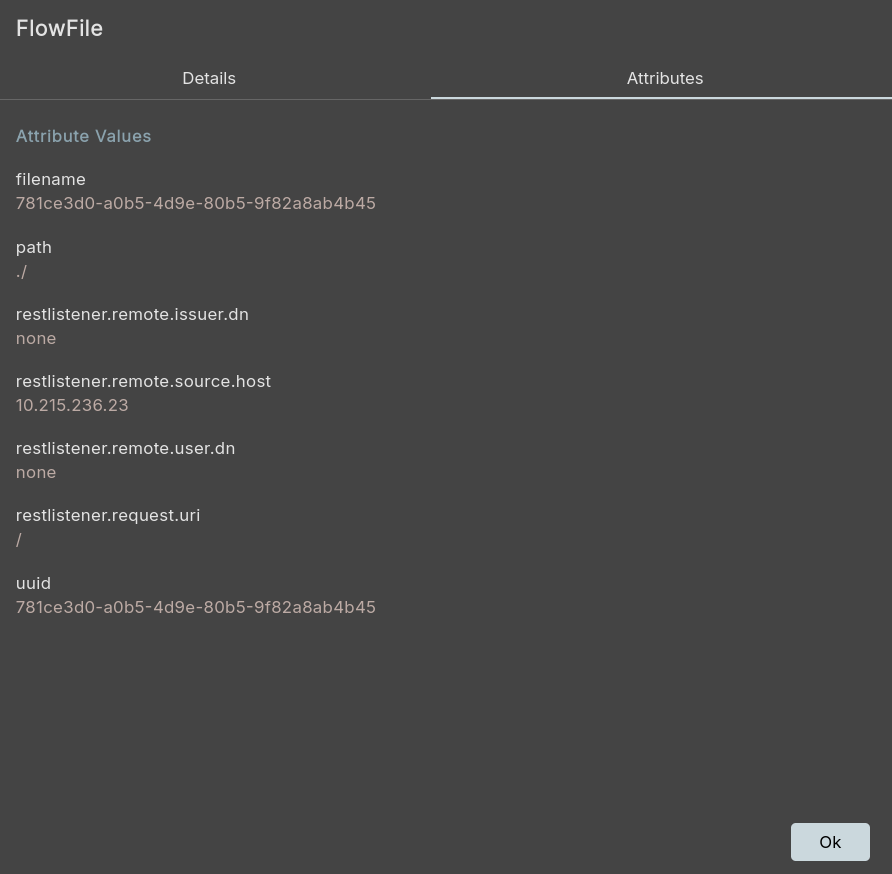

Resulting FlowFile

In the RouteOnAttribute processor, add a field called /webhook/foo with the value of ${"restlistener.request.uri":equals('/webhook/foo')}. You can replace /webhook/foo with whatever URL your HTTP service should be reachable. This guide also added /webhook/bar and /webhook/baz in a similar way.

The RouteOnAttribute processor now has one unmatched output as well as one for every field you defined. You can connect a processor for every HTTP path you routed on.

The result should look something like below and should allow you to consume many different HTTP POST requests.

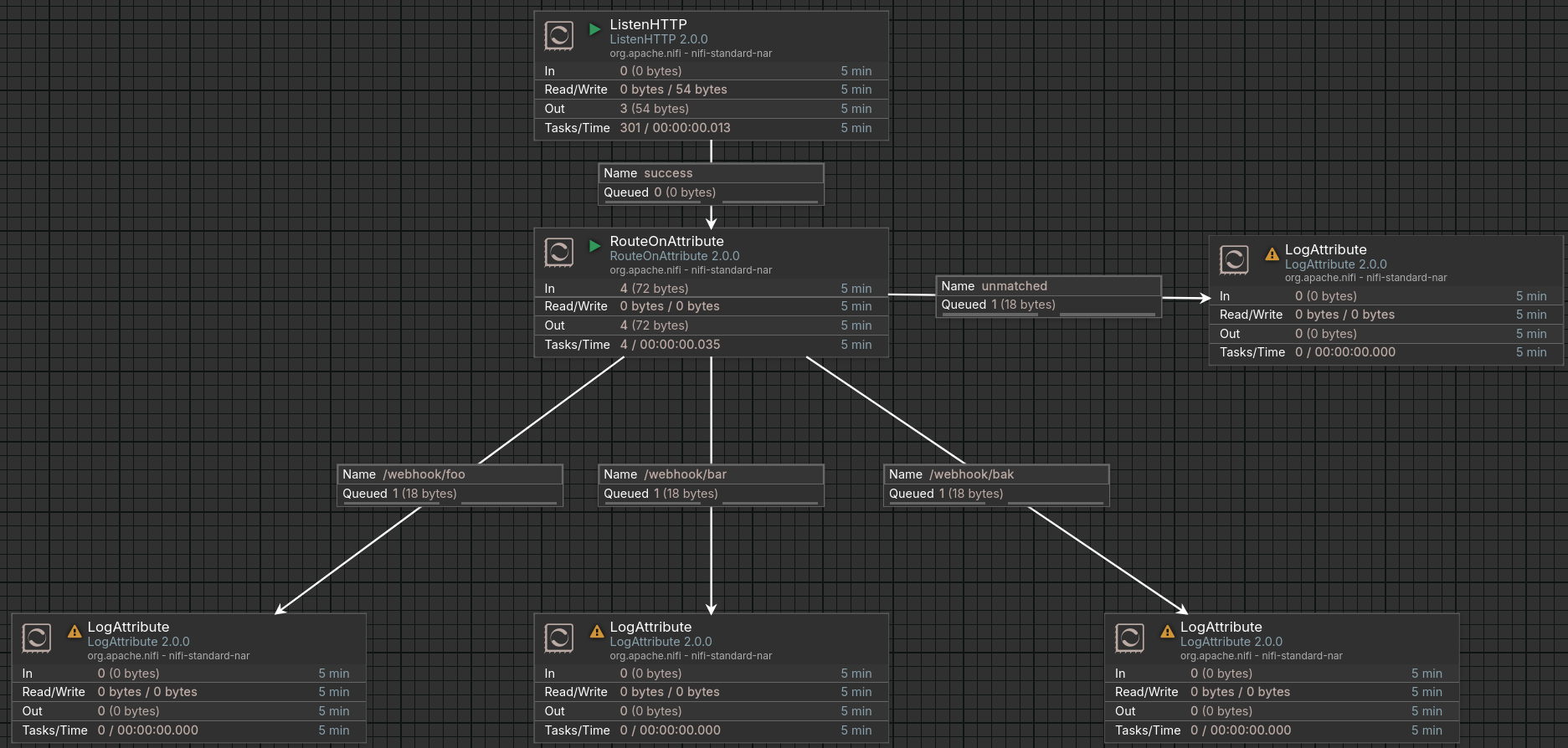

Result flow
